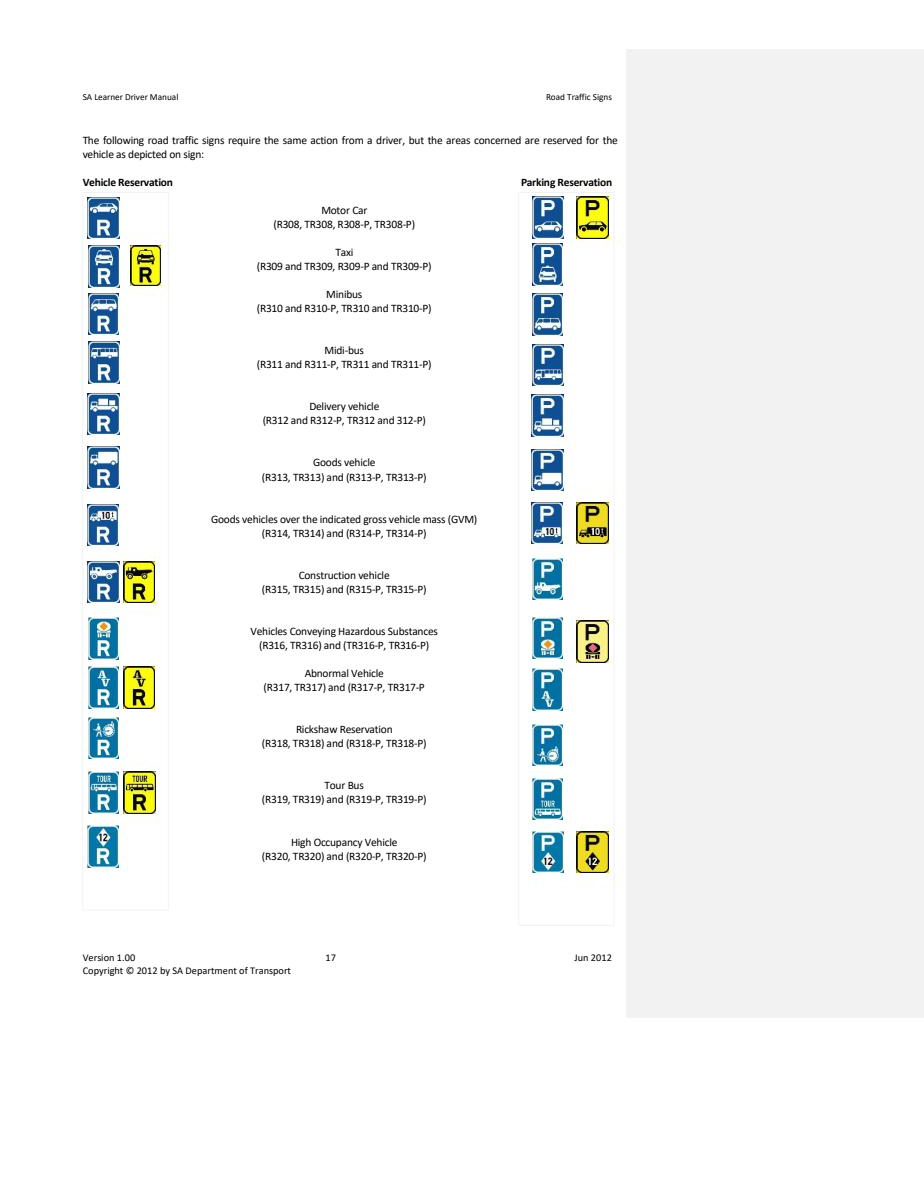

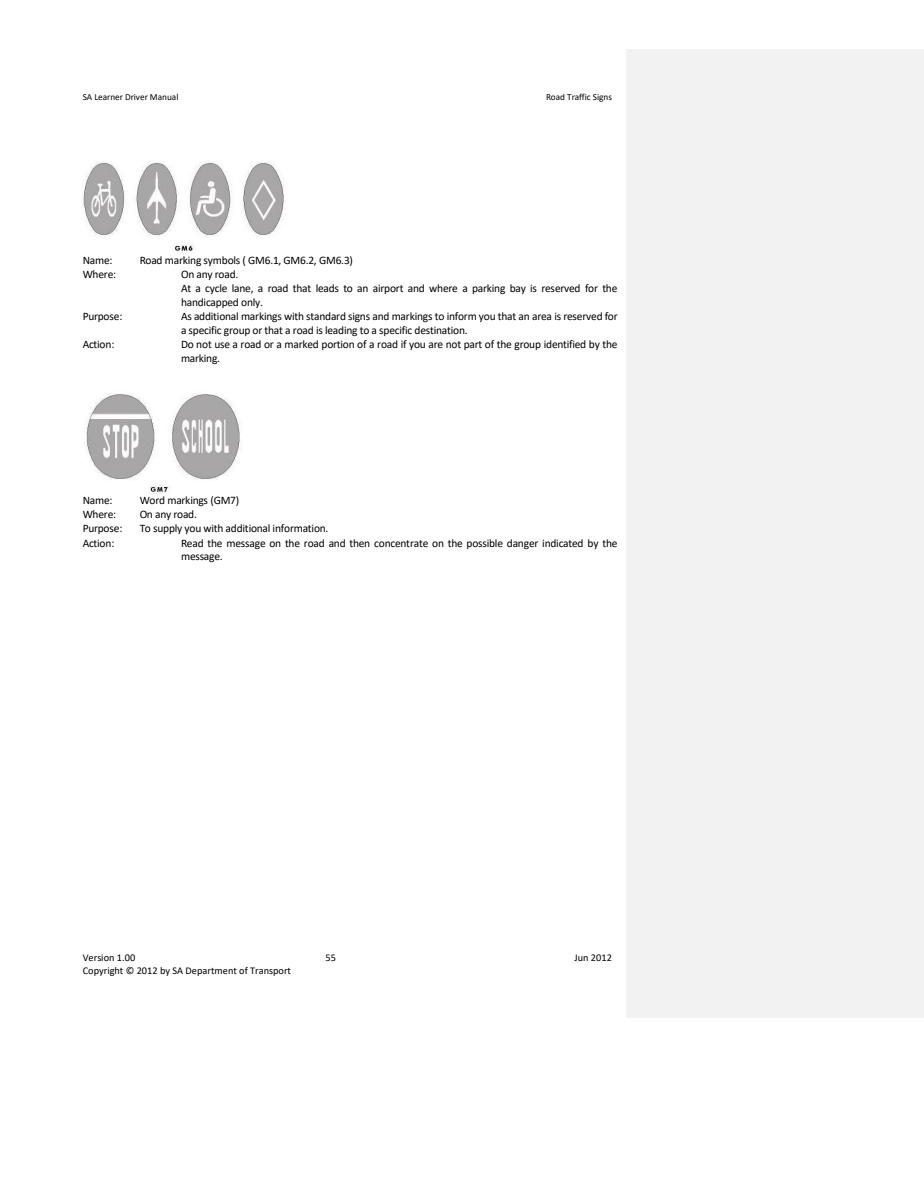

Signs Test Road Signs, Signals and Markings Test Pass mark: 23 out of 30. Q1. Road Marking Symbols (GM6) painted on the road, such as a wheelchair symbol in a parking bay, indicate that… The marking is purely decorative and has no legal effect The road or marked portion is reserved for a specific group and others may not use it Only pedestrians may interpret the symbol The marking applies only at night Q2. A Width Limit sign (R239) means a driver may not proceed if the vehicle's overall width… Exceeds the width indicated in metres on the sign Is exactly the width indicated Is not less than the width indicated in metres on the sign The sign only applies to trailers Q3. By the time a driver reaches the Supplementary Exit Direction sign (GA2/3), about 500m before the exit, they should be… Already off the freeway In the extreme left-hand lane if they intend to leave the freeway Signalling right In the extreme right-hand lane regardless of destination Q4. A Buses Only sign (R121) means the driver of a bus… May use any road regardless of this sign Must stop and check for passengers Shall only use that road or portion of that road Applies only outside urban areas Q5. A Hairpin Bend sign (W206/W207) warns of… A very sharp, U-shaped curve ahead A gentle, wide curve ahead A pedestrian crossing ahead A speed hump ahead Q6. A Lane Lines marking (GM1) instructs the driver to… Straddle two lanes when traffic is light Only applies to buses Drive in the centre of the demarcated lane Change lanes frequently to maintain speed Q7. A Time Limit subgroup sign (R502/R503) displayed below a regulatory sign means the regulatory sign applies… Only on public holidays Only during the period(s) or conditions shown on this sign Only to heavy vehicles At all times regardless of this sign Q8. An Advance Trailblazer sign (GE2) is used to… Point out the direction to follow to reach a more important route Show a parking area Warn of a hazard ahead Confirm you have already joined the correct route Q9. A combination sign labelled R208-502 means… No U-turn at night only Pay toll for a set distance Speed limit at night only No unauthorised vehicles, during two limited time periods Q10. A Pedestrians sign (W307) warns that pedestrians may be crossing the road for the next… 1 km 500m 2 km 5 km Q11. Referring to the Stop sign (R1.1) on this sheet: where must you stop? Behind the stop line, or level with the sign if there is no line Only when another vehicle is present You are not required to stop, only slow down Level with the centre of the intersection Q12. A Right-of-Way sign (IN7) tells the driver that… You must always stop regardless Pedestrians always have priority here You have right of way at the intersection ahead, but must still watch that other traffic yields This is a temporary sign only Q13. A Disabled Persons Vehicle reservation sign (R323) means a driver who is not authorised must… Not use that road or park in that area Yield to disabled drivers but may still park there Only avoid the area during peak hours Only applies to parking, not the roadway Q14. A Bus Reservation sign (R301) indicates that the road or carriageway is reserved for… Emergency vehicles only All public transport Taxis only Buses only Q15. A Secondary Crossroad sign (W103) indicates that you must… Proceed without slowing since you have priority Stop only if a pedestrian is visible Yield to traffic approaching from left or right Sound your hooter before entering Q16. A Co-ordinated Traffic Signals sign (IN14) shows a recommended speed. This speed is… A recommendation, not a speed limit A mandatory minimum speed Only applicable at night A mandatory maximum speed Q17. A Scholar Patrol Ahead sign (TW305) warns the driver to… Slow down and look for a stop sign displayed by the scholar patrol Sound the hooter to warn children Stop unconditionally regardless of the patrol Only slow down after school hours Q18. A Horses and Riders Prohibited sign (R238) applies to… Only on freeways Only during daylight hours Only mounted riders, not those leading a horse A horse rider, whether mounted on or leading a horse Q19. A Motorcycles Prohibited sign (R222) on a freeway means motorcyclists must… Ignore it if riding in a group Continue at reduced speed Leave at the first exit if displayed on a freeway Pull over and wait for assistance Q20. The STOP/RY-GO sign is typically used… Only at night At road works for temporary traffic control Only at railway crossings Only on freeways Q21. At a 4-way stop, if more than one vehicle stops at the same time, who moves off first? The vehicle turning right The vehicle that stopped first The largest vehicle Whoever hoots first Q22. This sign (R129) indicates that the road or portion of the road is set aside for use by… Agricultural vehicles only Tour buses only Rickshaws only Minibuses only Q23. When a diagrammatic sign shows a lane ending, converging, or merging, the driver should… Ensure there is a big enough gap in traffic before merging, and yield to merging traffic Speed up to pass before the lane ends Stop in the ending lane and wait Sound the hooter to warn other drivers Q24. A High Occupancy Vehicle reservation sign (R320) reserves the road for… Vehicles carrying a minimum number of occupants Ambulances only Tour buses only Rickshaws only Q25. A Domestic Animals sign (W310/W311/W312) warns of free-ranging animals for the next… 1 km 3 km 2 km 500m Q26. The Vehicle Reservation / Parking Reservation sign pairs shown here mean drivers of other vehicle types must… Pay a toll before using it Use it only on weekends Only use it after 6pm Not use that road or parking area Q27. A Stop line (RTM1) with no stop sign present has… Effect only during school hours No legal meaning The same meaning as a stop sign The meaning of a yield line only Q28. At a traffic circle (W201) with no other indication, who has right of way? Whichever vehicle arrives first Traffic already within the circle Traffic entering from the left Heavy vehicles always Q29. At the Beginning of Dual Roadway sign (W118/W119), what should the driver expect? The road is about to become a gravel road A tunnel is ahead The single carriageway is ending and a one-way road begins A speed hump is ahead Q30. A Woonerf sign (R403) limits vehicle speed in the area to… 10 km/h 40 km/h 20 km/h 30 km/h Submit Test
